Designation

ISO-Type 5436-1

Design

Line of product

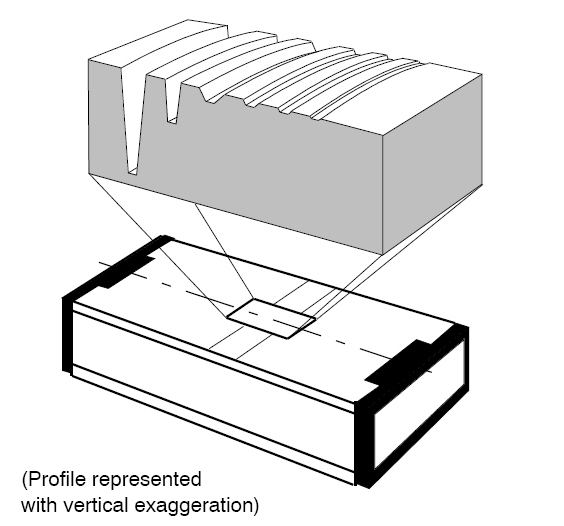

Stylus tip control standard

Type B

3 x 3 taper angles with
70°, 90° und 120°

KNT 4050/01

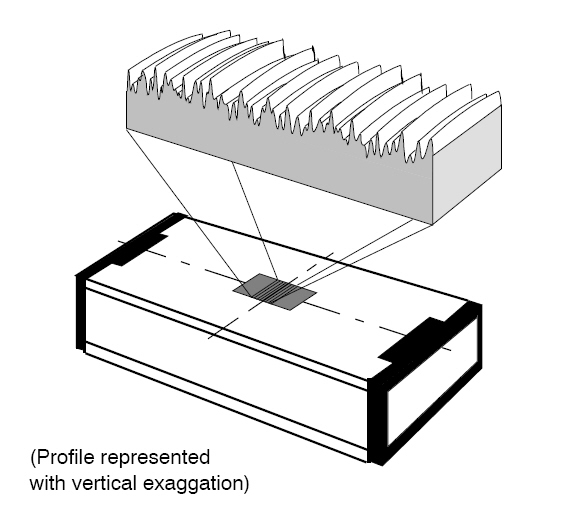

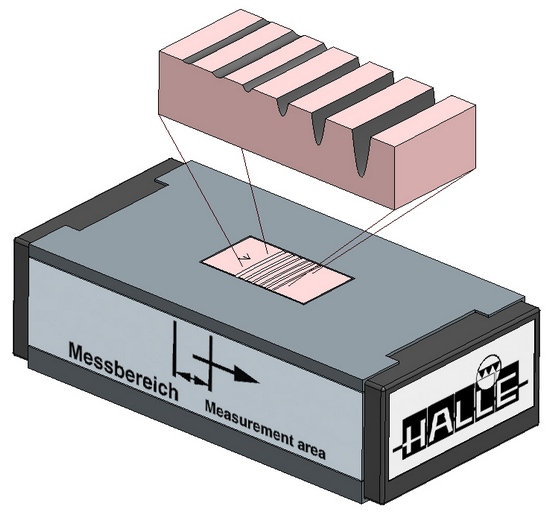

Depth setting standards

Type A

with round base grooves
(6 grooves and 3 grooves)

KNT 4060/03

Depth setting standards

Type A

with planar grooves

KNT 4080/03

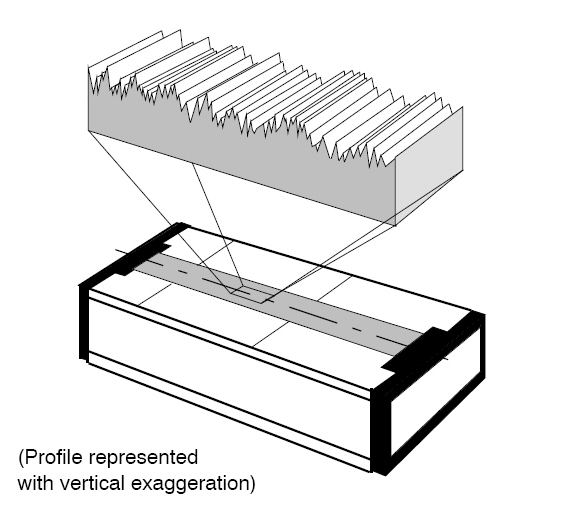

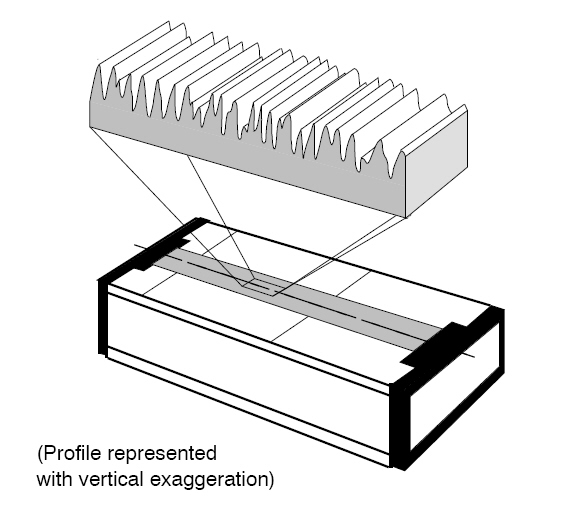

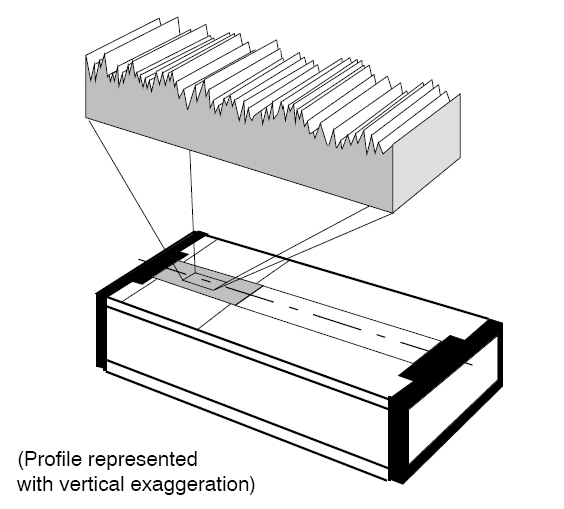

Roughness measurement
standards

Type D

standard

KNT 4058/01

Roughness measurement
standards

Type D

inexpensive version

KNT 4058/03

Roughness measurement
standards

Type D

for sheet metal surfaces

KNT 4058/02

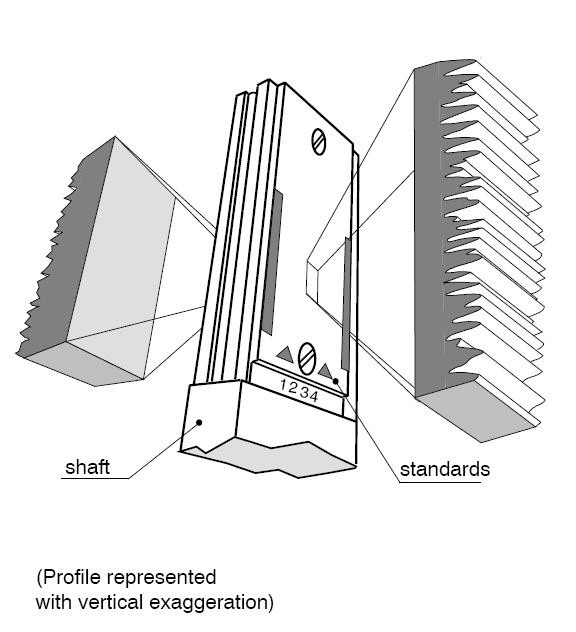

Roughness measurement
standards

Type D

for sheet metal measuring
stations
(for 2+4 Two-Button Stylus)

KNT 2058/05

Roughness measurement
standards

Type D

superfine roughness profile

KNT 4070/03

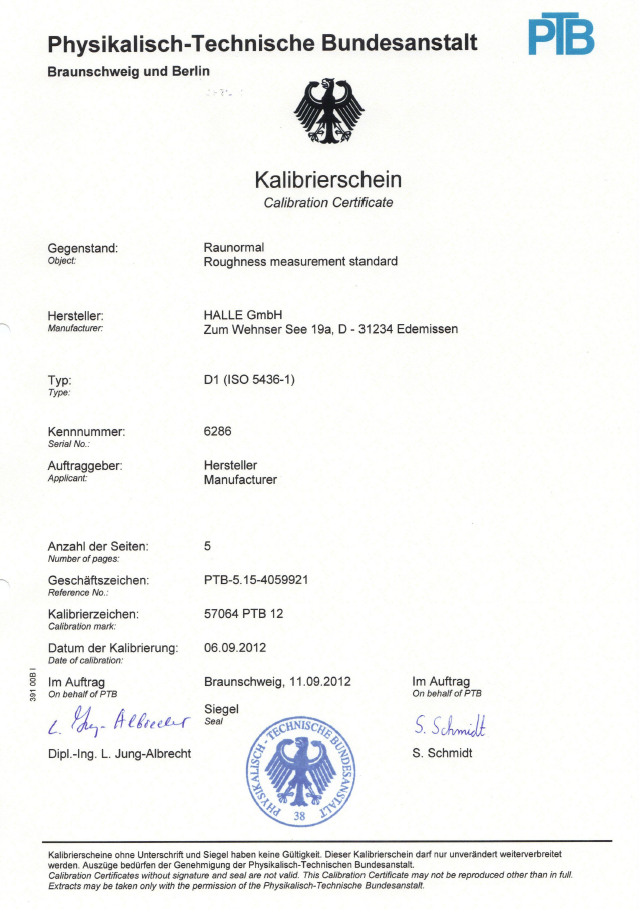

Calibration costs
for recalibration

Comparison standards
for surface roughness

VOR 2090/01
