高定向熱解石墨 HOPG-ZYB-2mm
標準質量
晶體尺寸：橫向~12mm，厚度2mm
電學性能：金屬
晶體結構：六邊形
晶胞參數：a = b =0.246, c = 0.667 nm, α = β = 90°, γ =120°
晶體類型：合成
晶體純度：>99.995%
旋 轉 角：0.8° +/- 0.2°

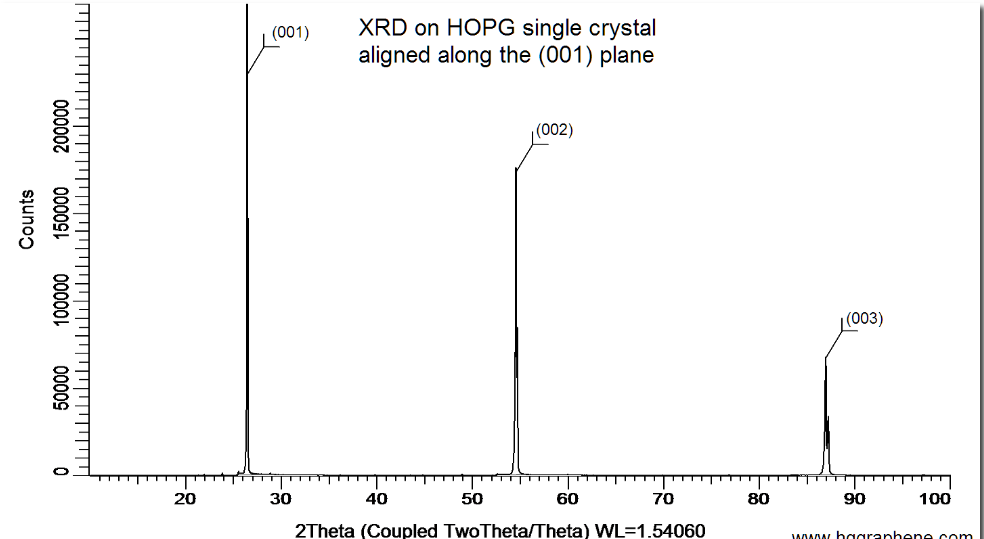

X-ray diffraction on a HOPG single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 3 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3
